Face Plates
Face plates are the top boards and where the art/circuits are meant to go. Most examples are simple LED blinkies but sensors and other components can and should be considered for design as well! The ones listed below I plan on selling in small quantities on my tindie once I can afford to build up stock. For now they're here as references and examples.
Amulet

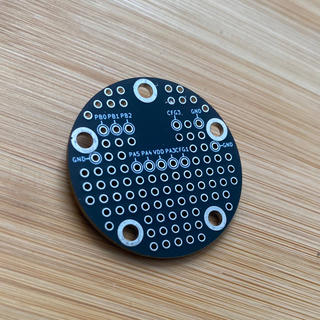

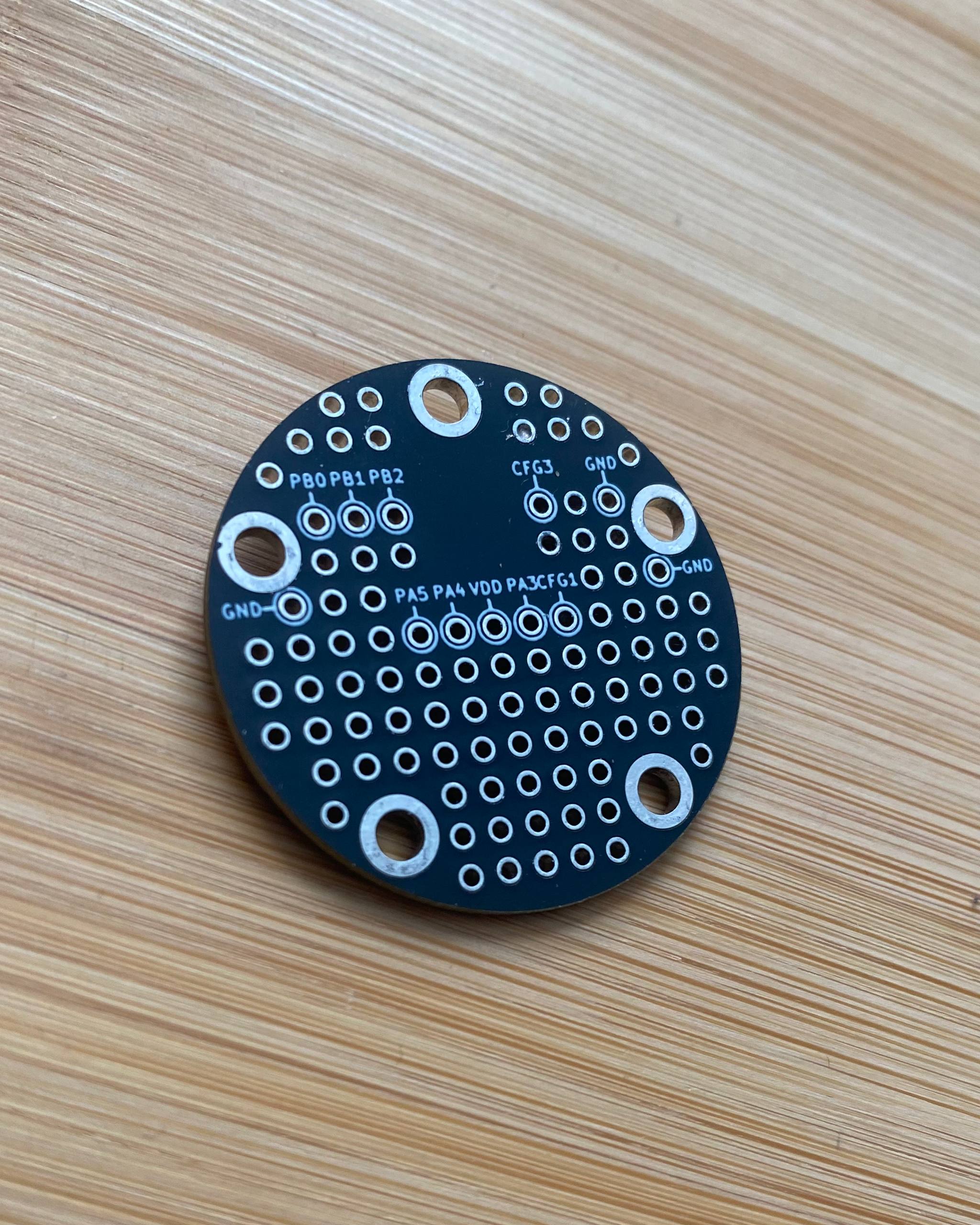

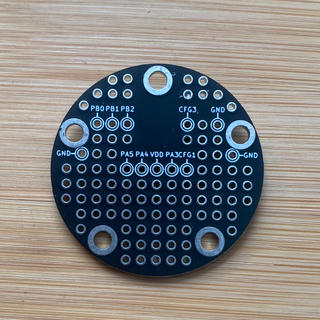

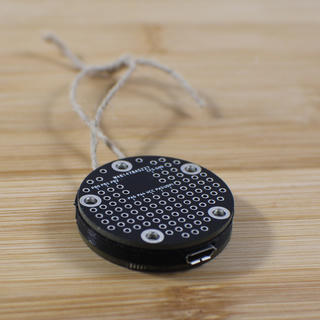

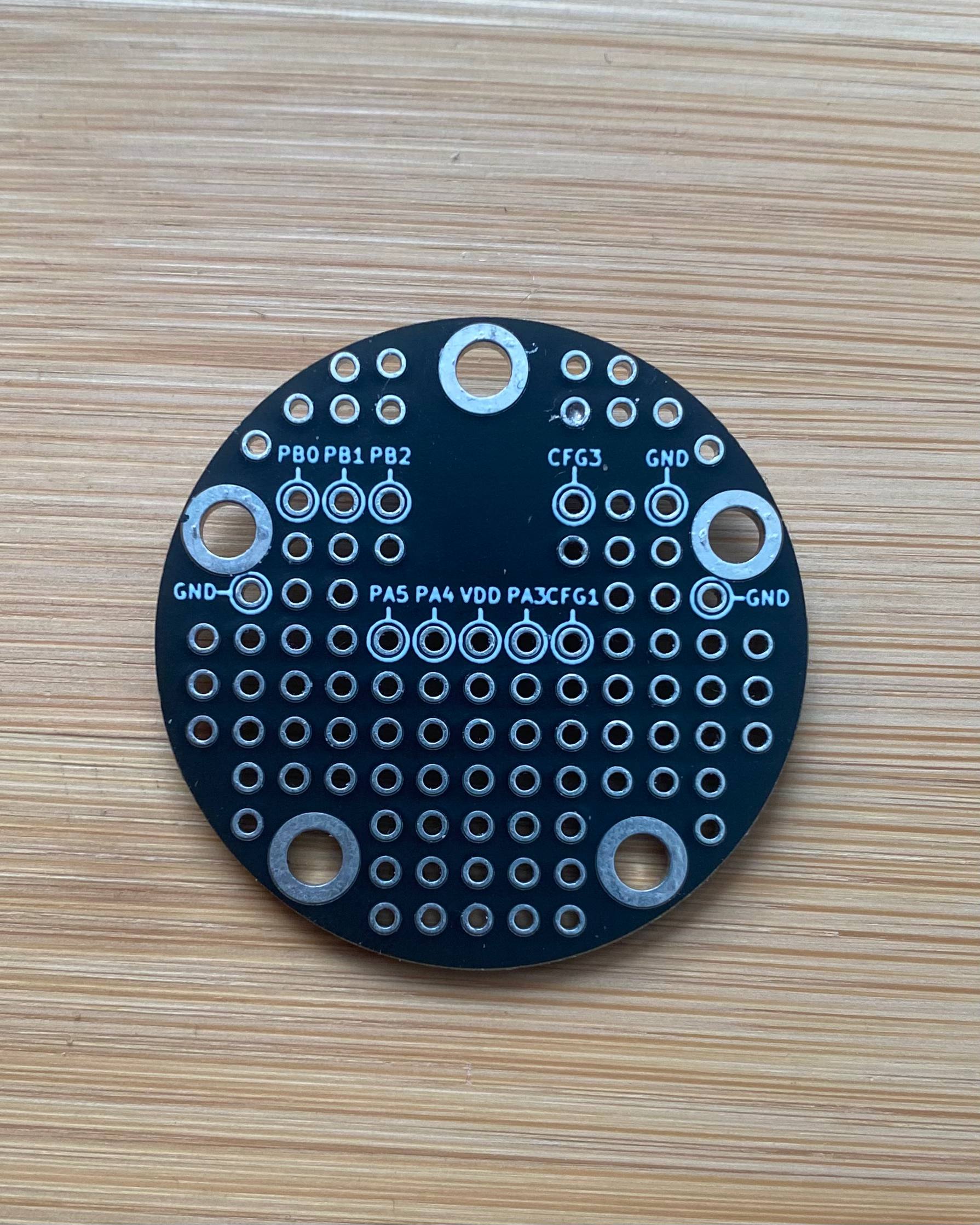

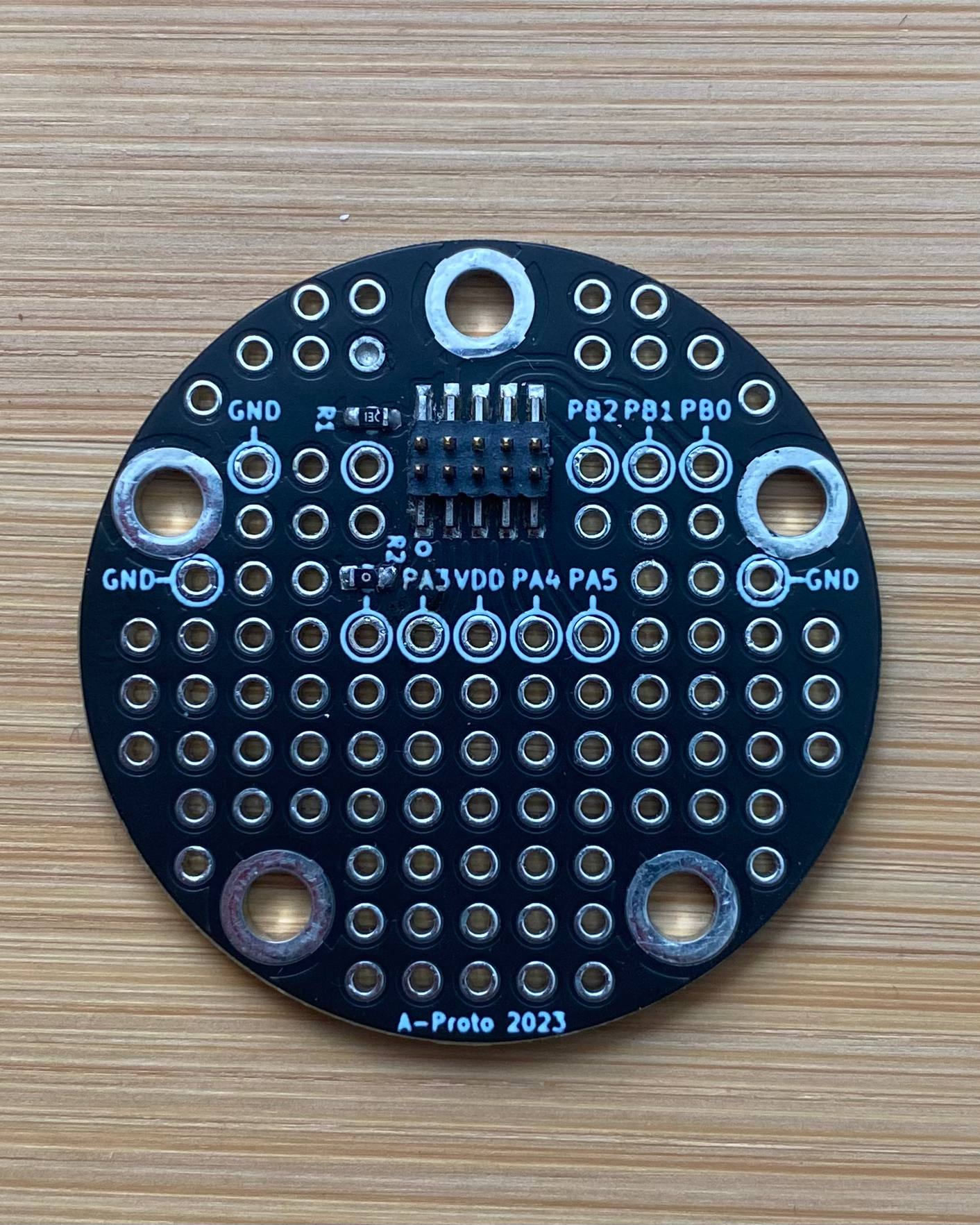

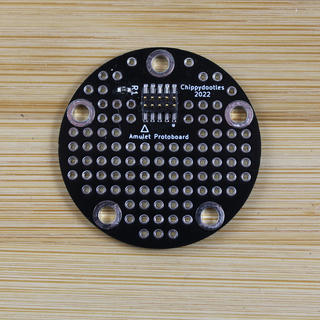

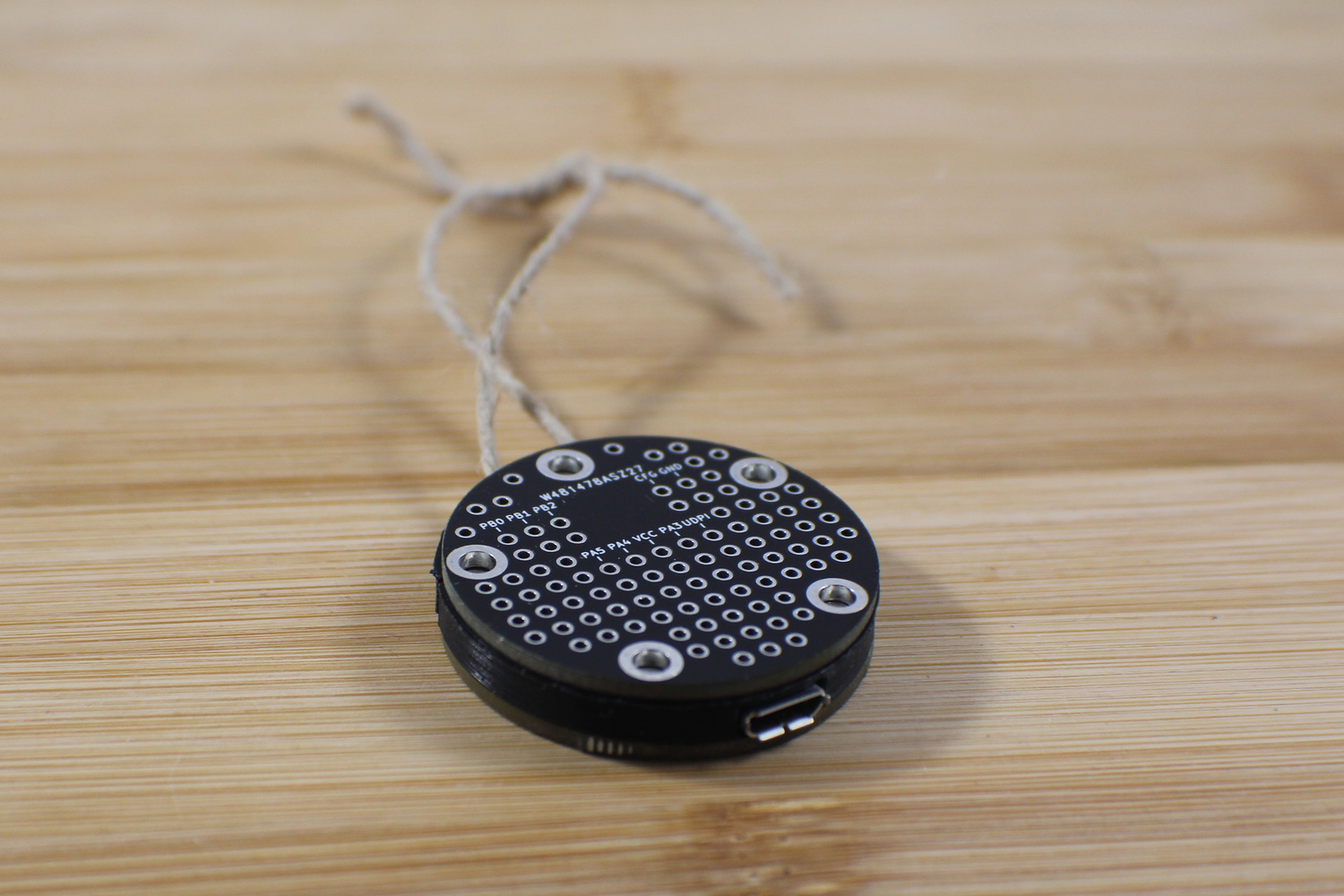

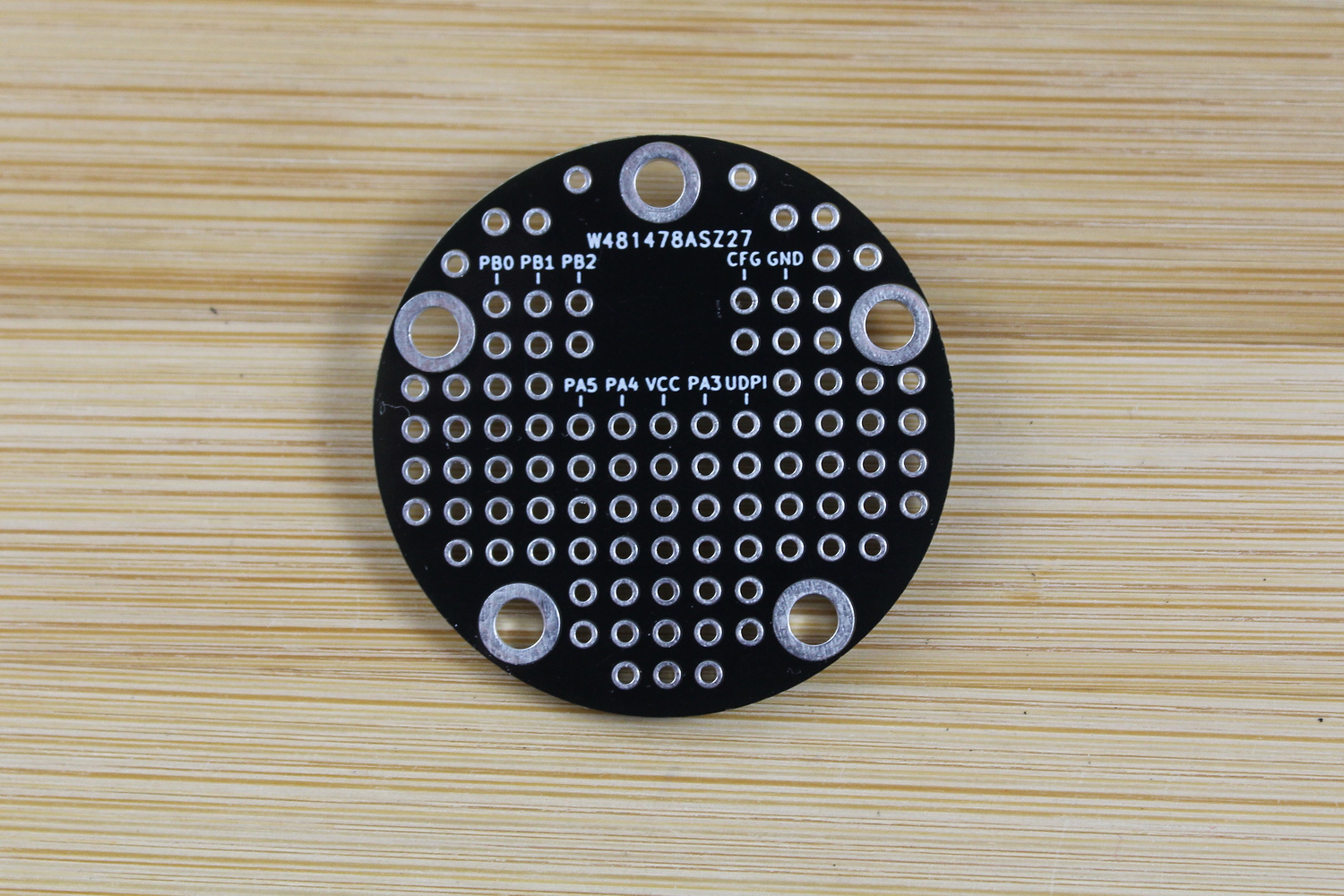

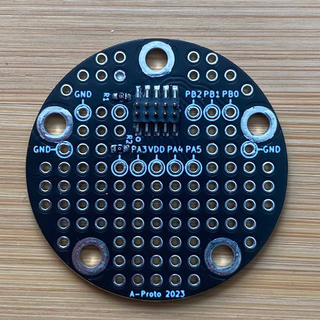

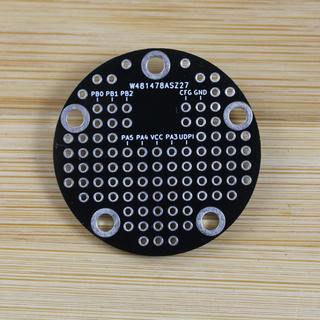

A-Proto
Prototype your circuits for your own face plate or forgo the fab house and free wire your own!
- Configured Voltages: (SEL=L)3.0V, (SEL=H)1.8V
- If you don't want to use configured voltages remove these resistors from the back of the board and either replace the resistor with desired value or use the breakout CFG pad to solder a tht resistor. Do not use a custom resistor without first removing soldered on smd resistors.

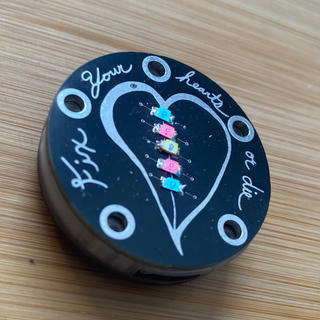

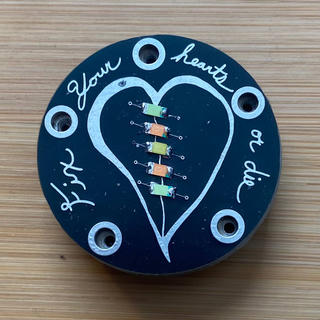

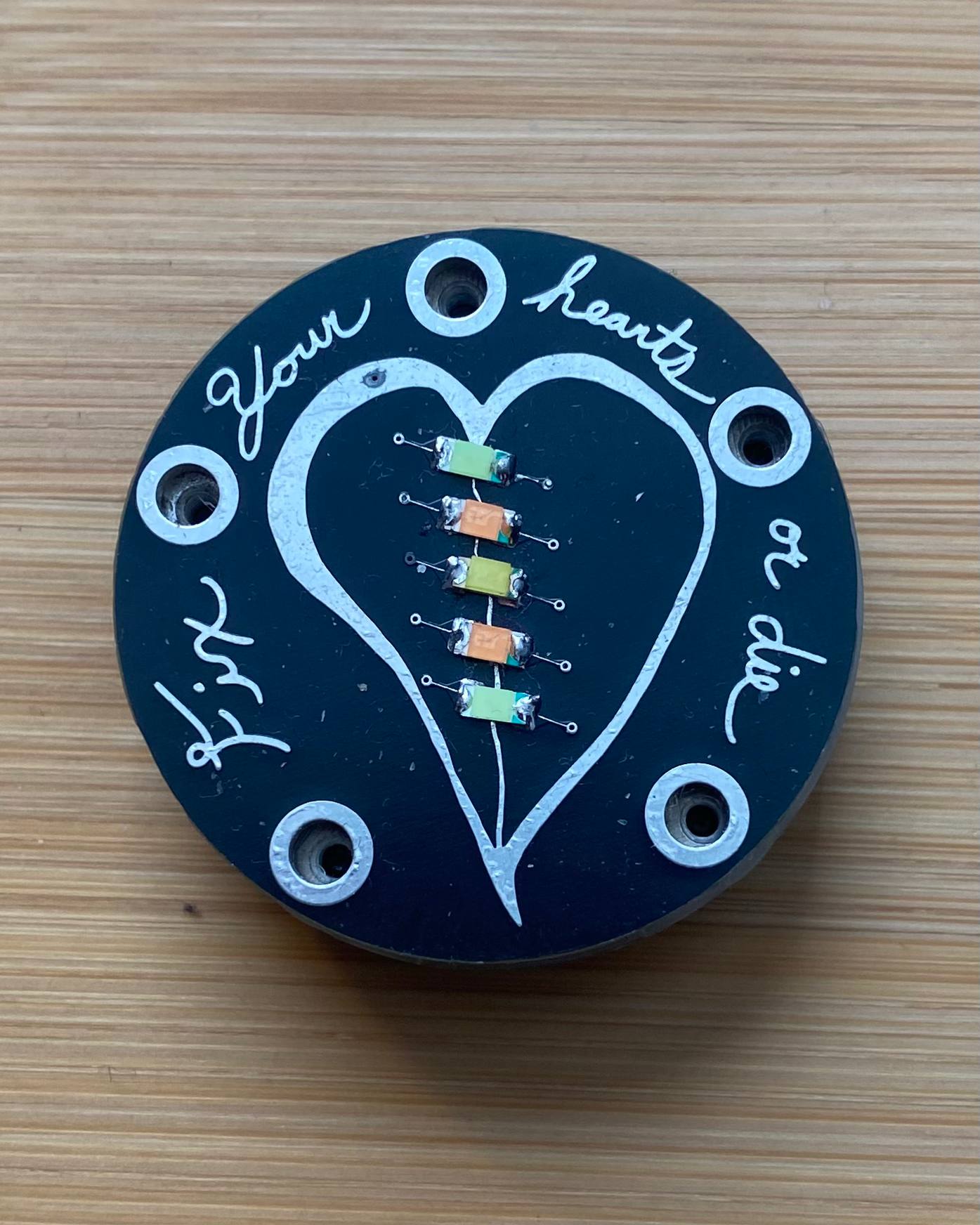

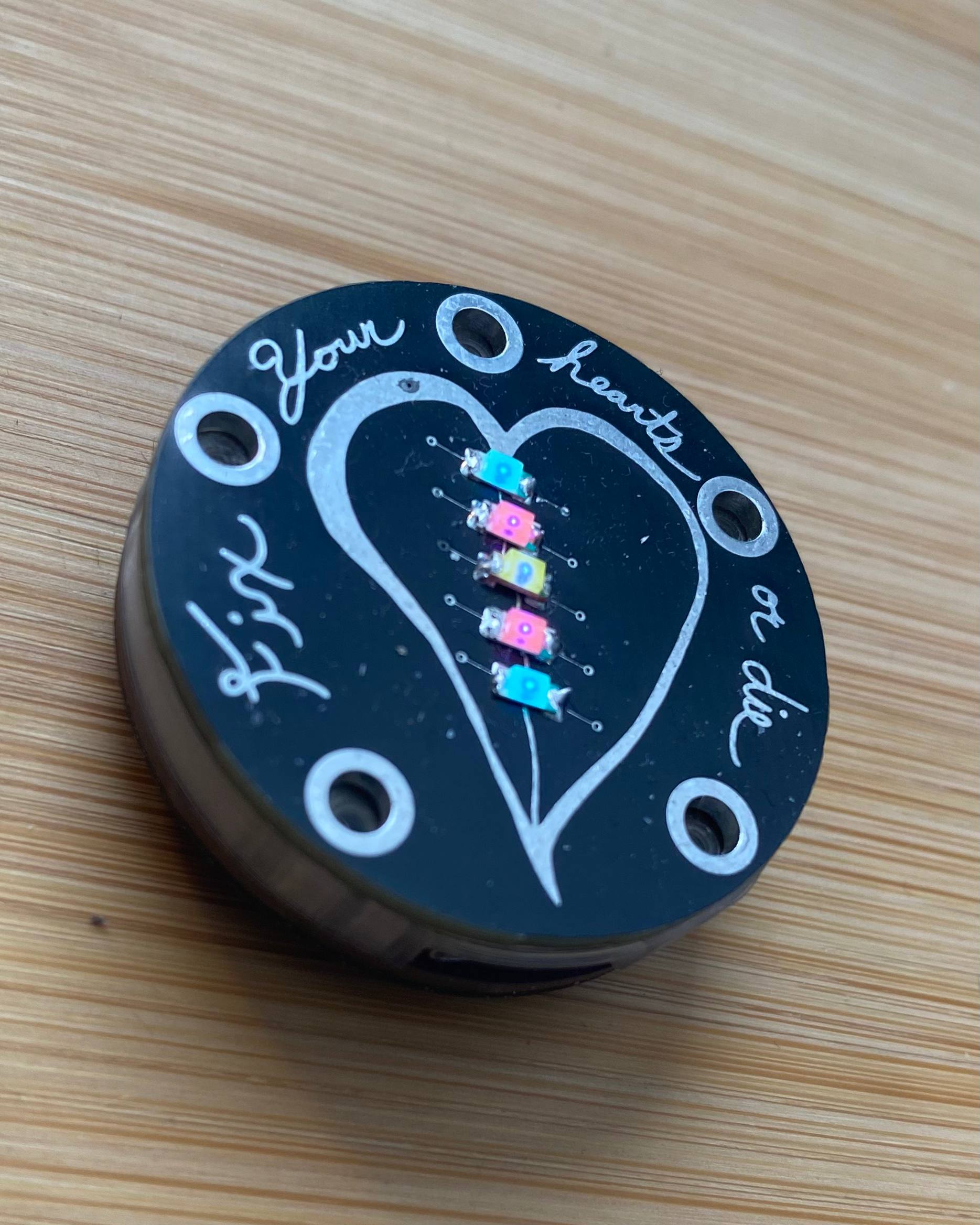

A-FYH
Fix your hearts please
- LED: 5
- PINS: PB0, PB1, PB2
- Touch (1616 only): PA4, PA5
- Configured Voltage: (SEL=L)3.0V, (SEL=H)1.8 1.8V

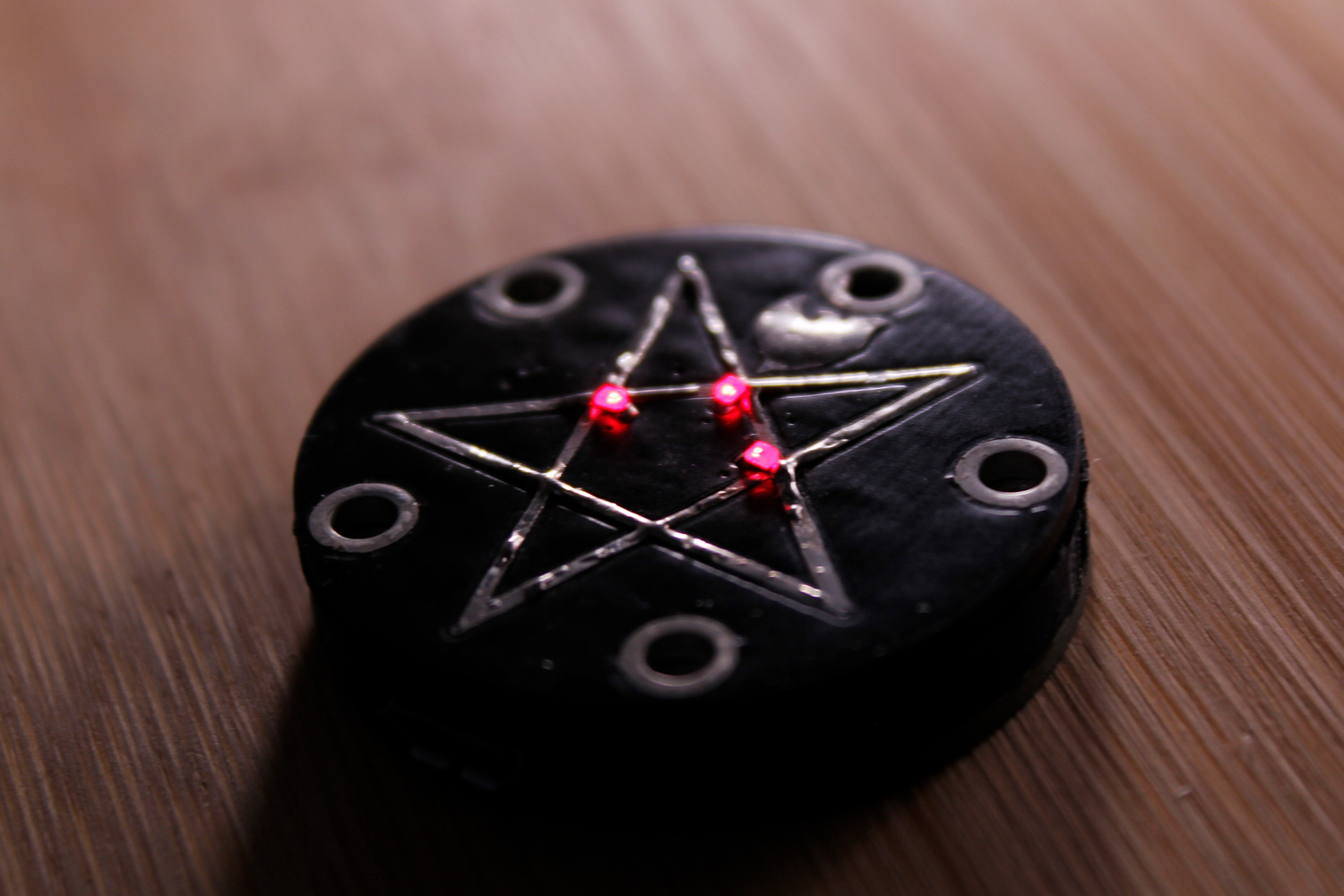

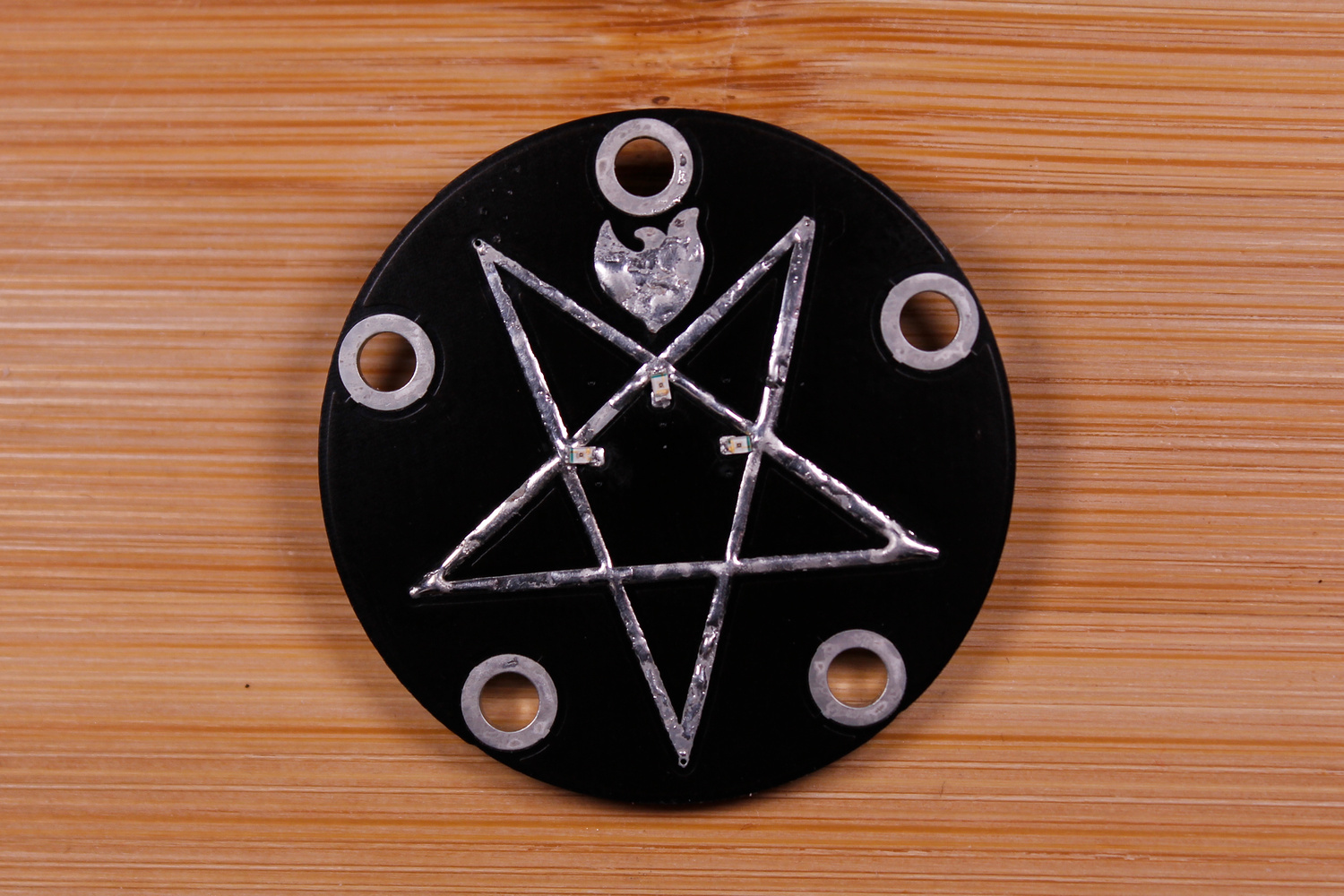

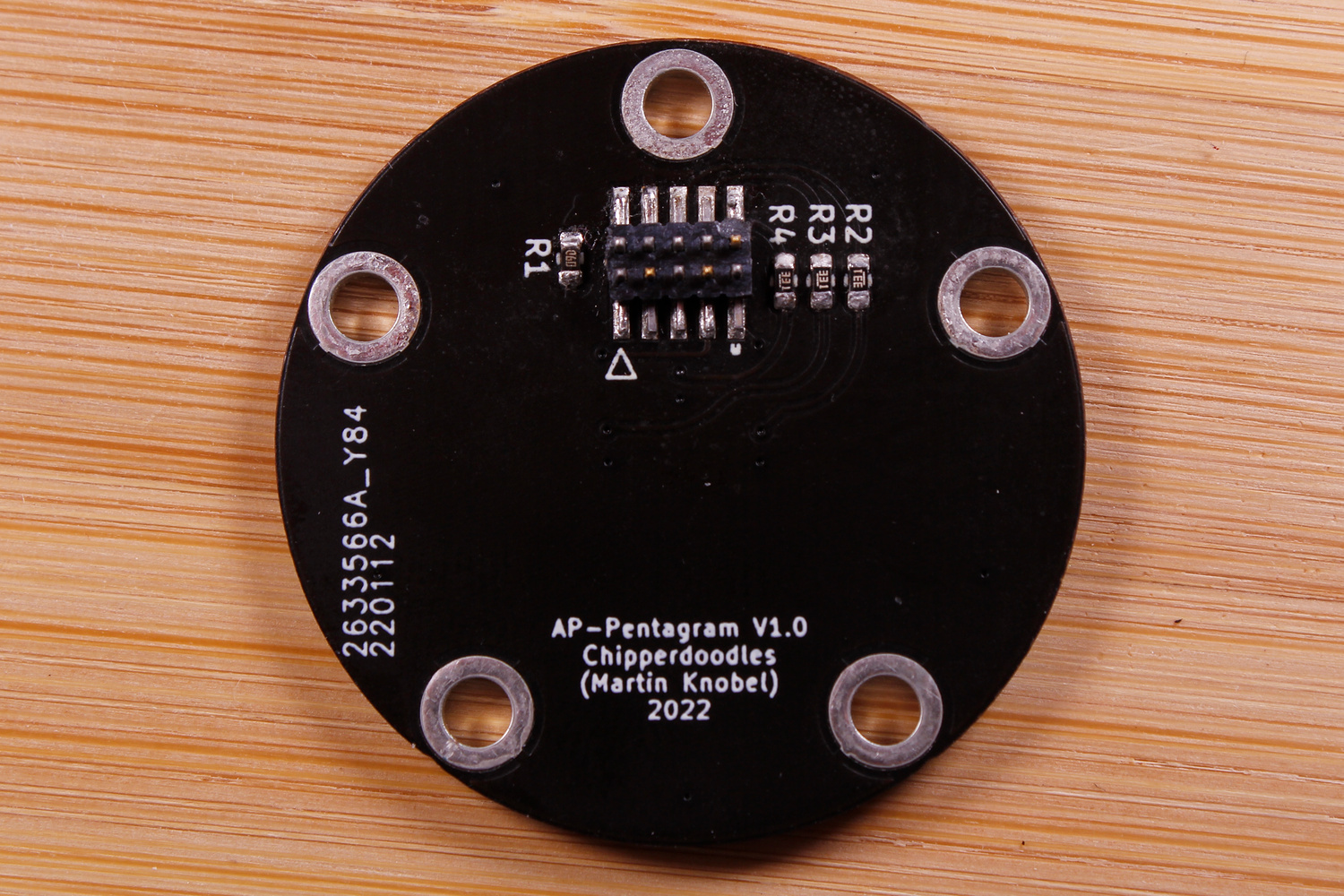

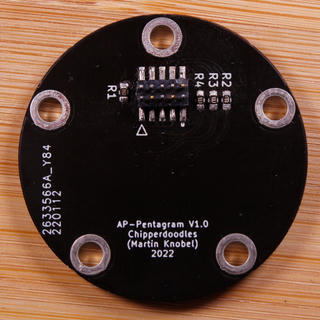

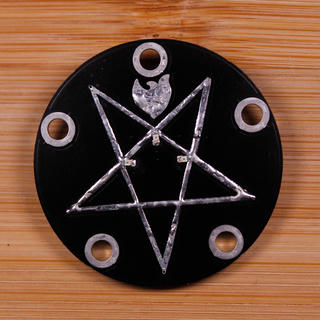

A-Pentagram
5 points 3 eyes, all love.
- LED: 3 Red
- PINS: PB0, PB1, PB2
- Touch (1616 only): PA4, PA5
- Configured Voltage: (SEL=L)3.0V, (SEL=H)1.8 1.8V

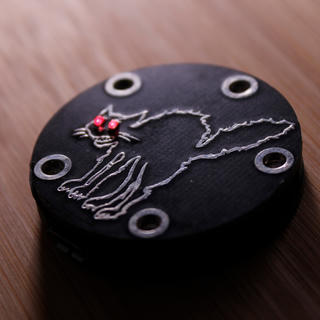

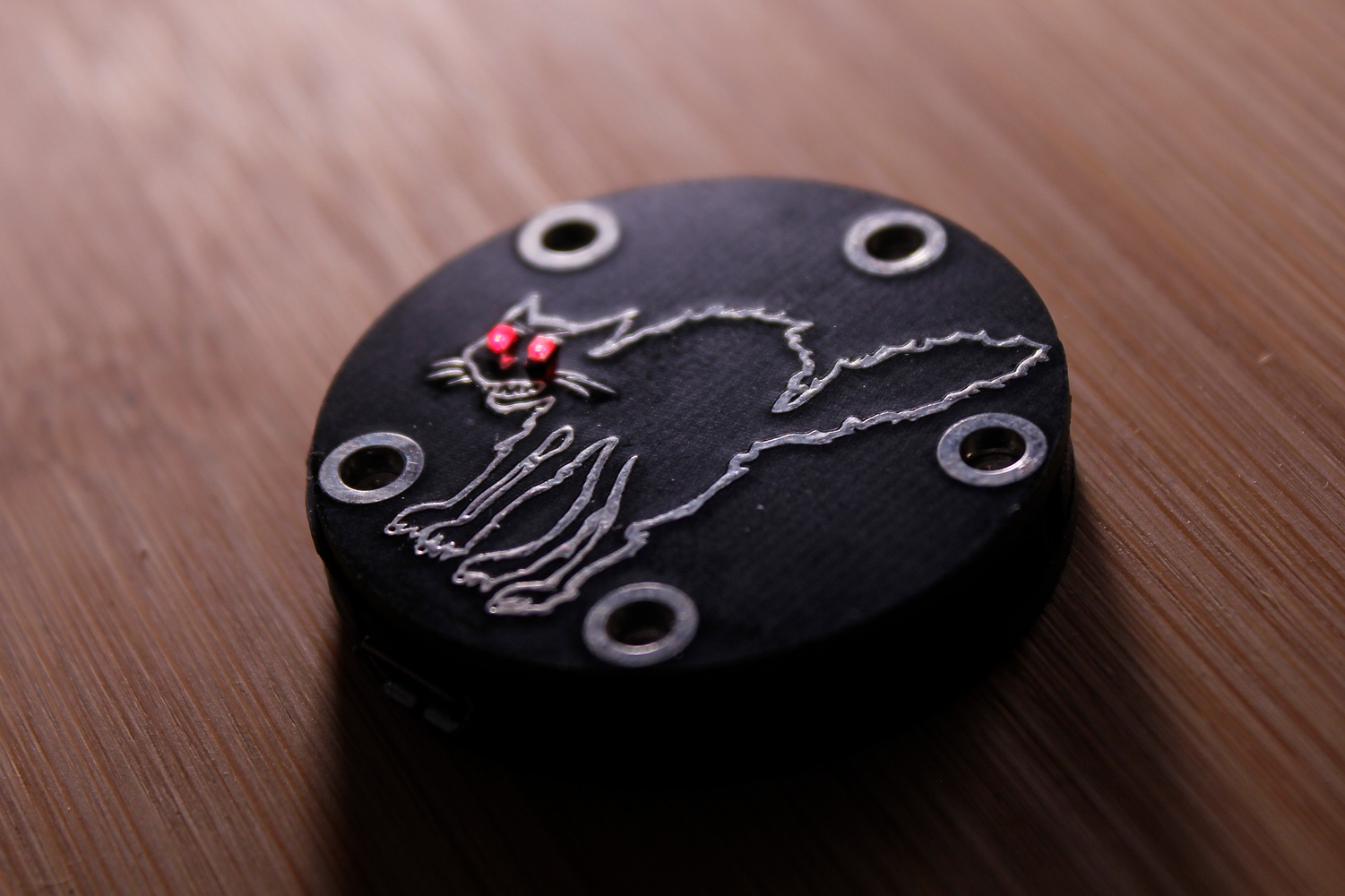

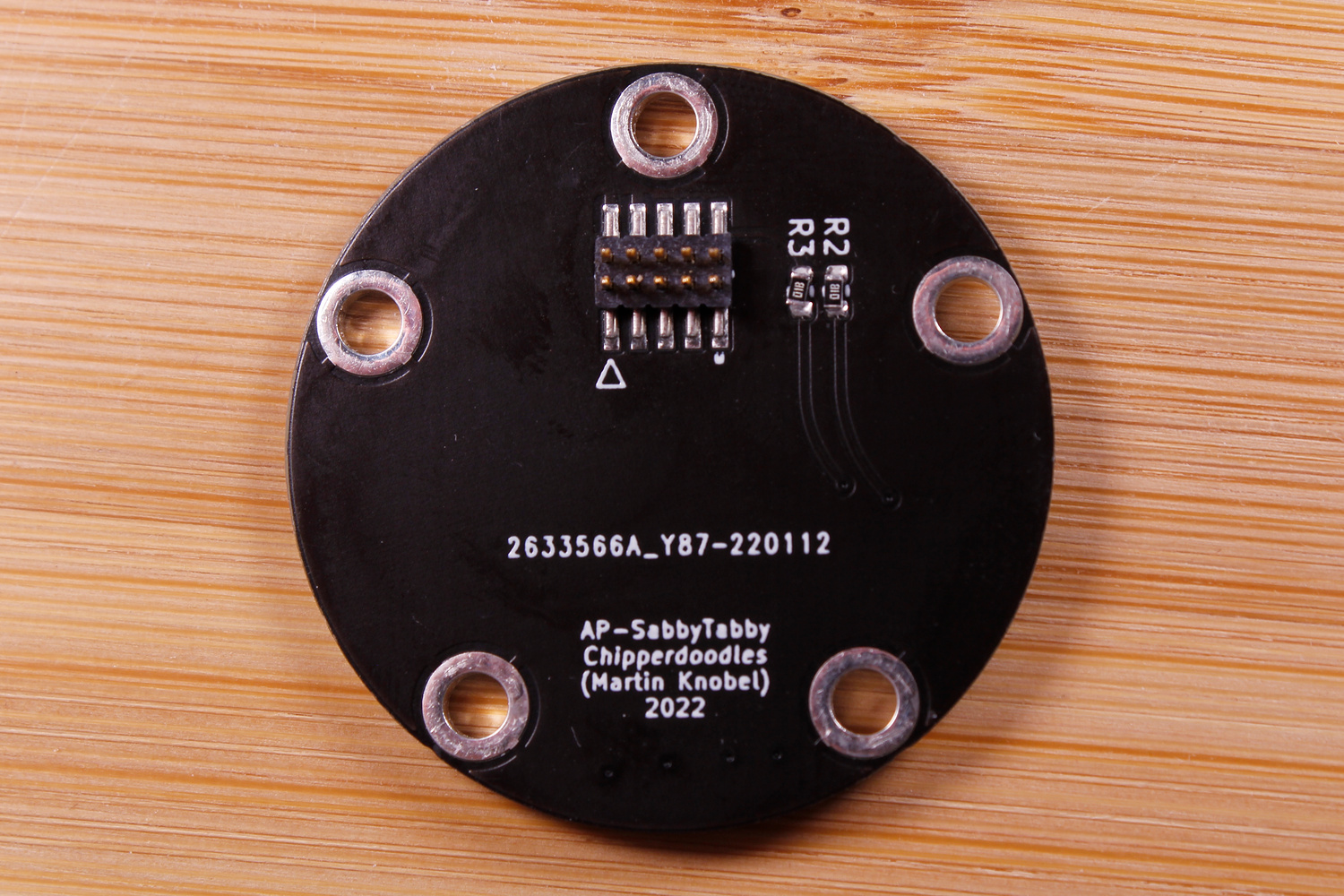

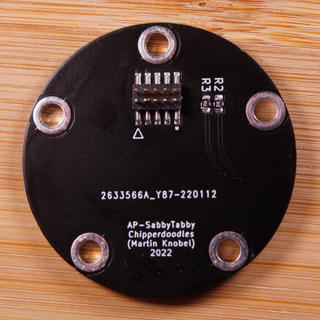

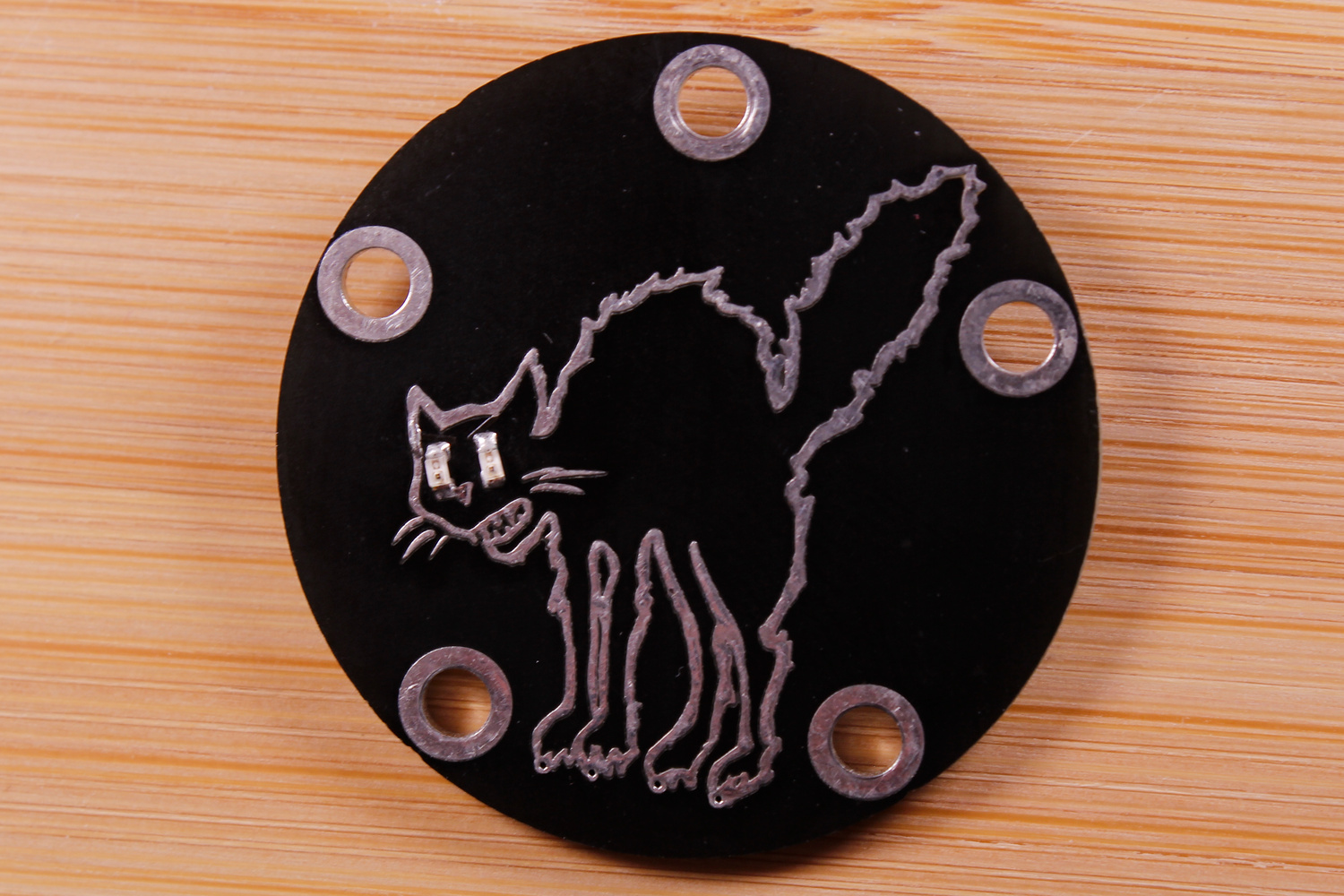

A-SabbyTabby
An injury to one makes kitty unhappy.
- LED: 2 Red
- PINS: PB2
- Touch (1616 only): No
- Configured Voltage: (SEL=L)3.0V, (SEL=H)1.8

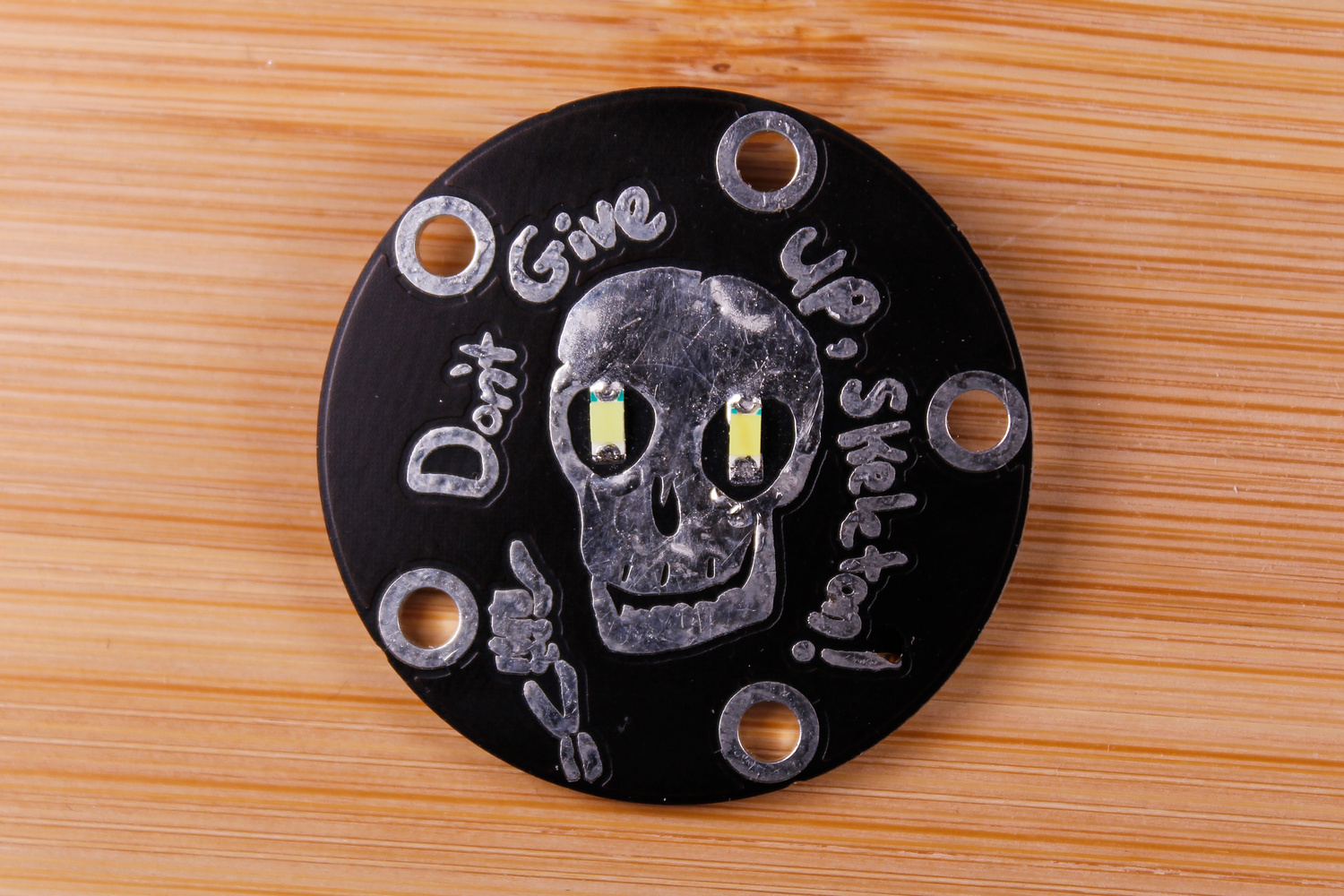

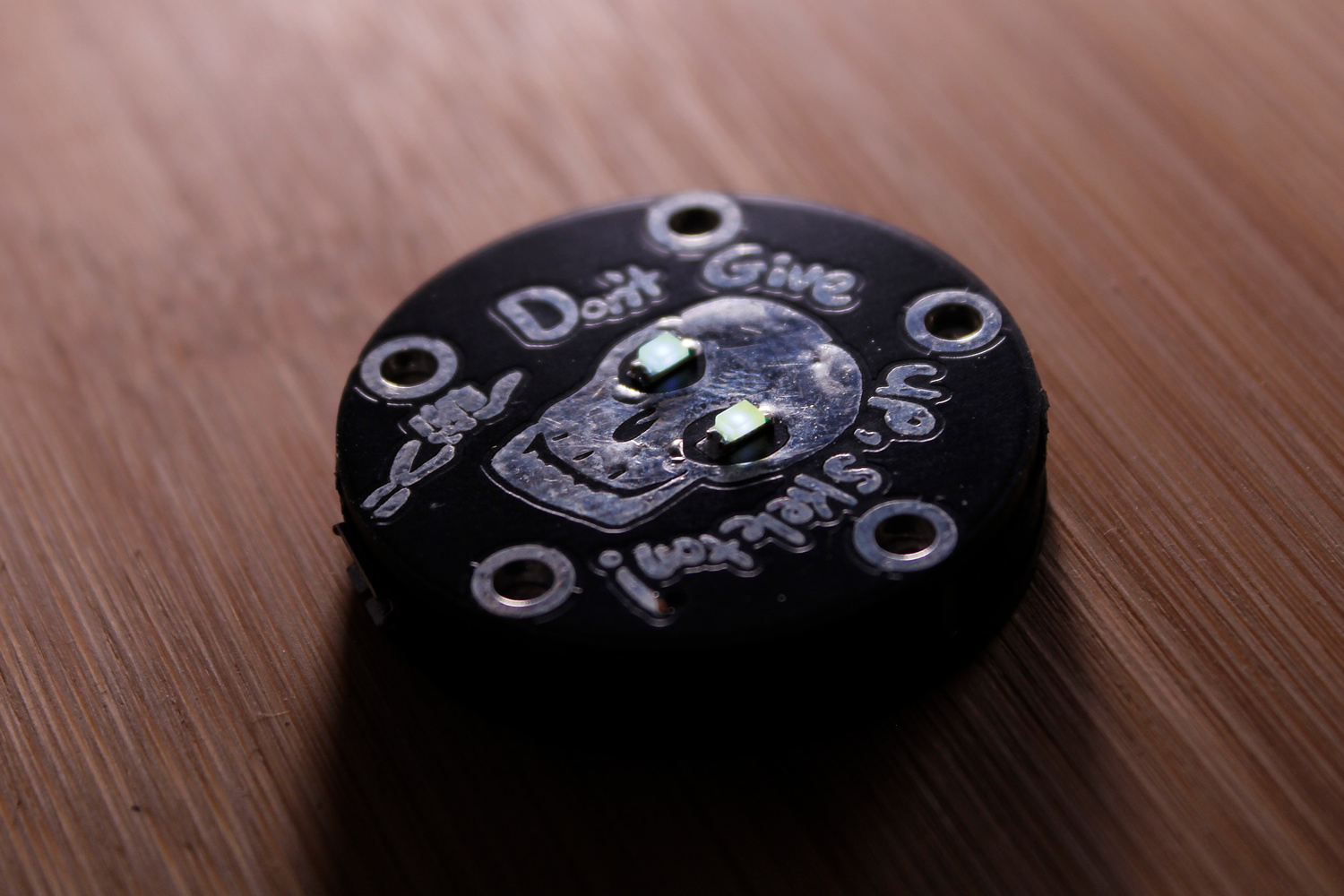

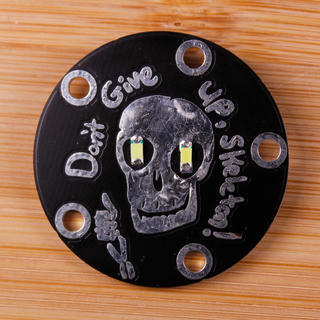

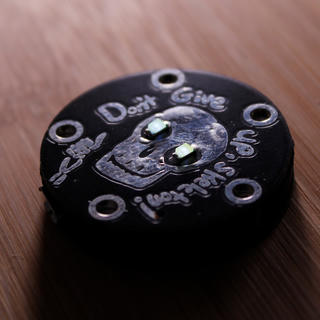

A-DGUS (Don't Give up Skeleton)
Momento Mori but supportive.
- LED: 2 White
- PINS: PB0, PB2
- Touch (1616 only): PB1 (skull is touch pad)
- Configured Voltage: (SEL=L)3.0V, (SEL=H)2.8V

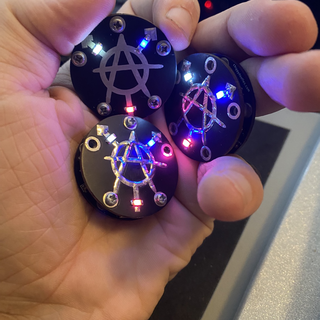

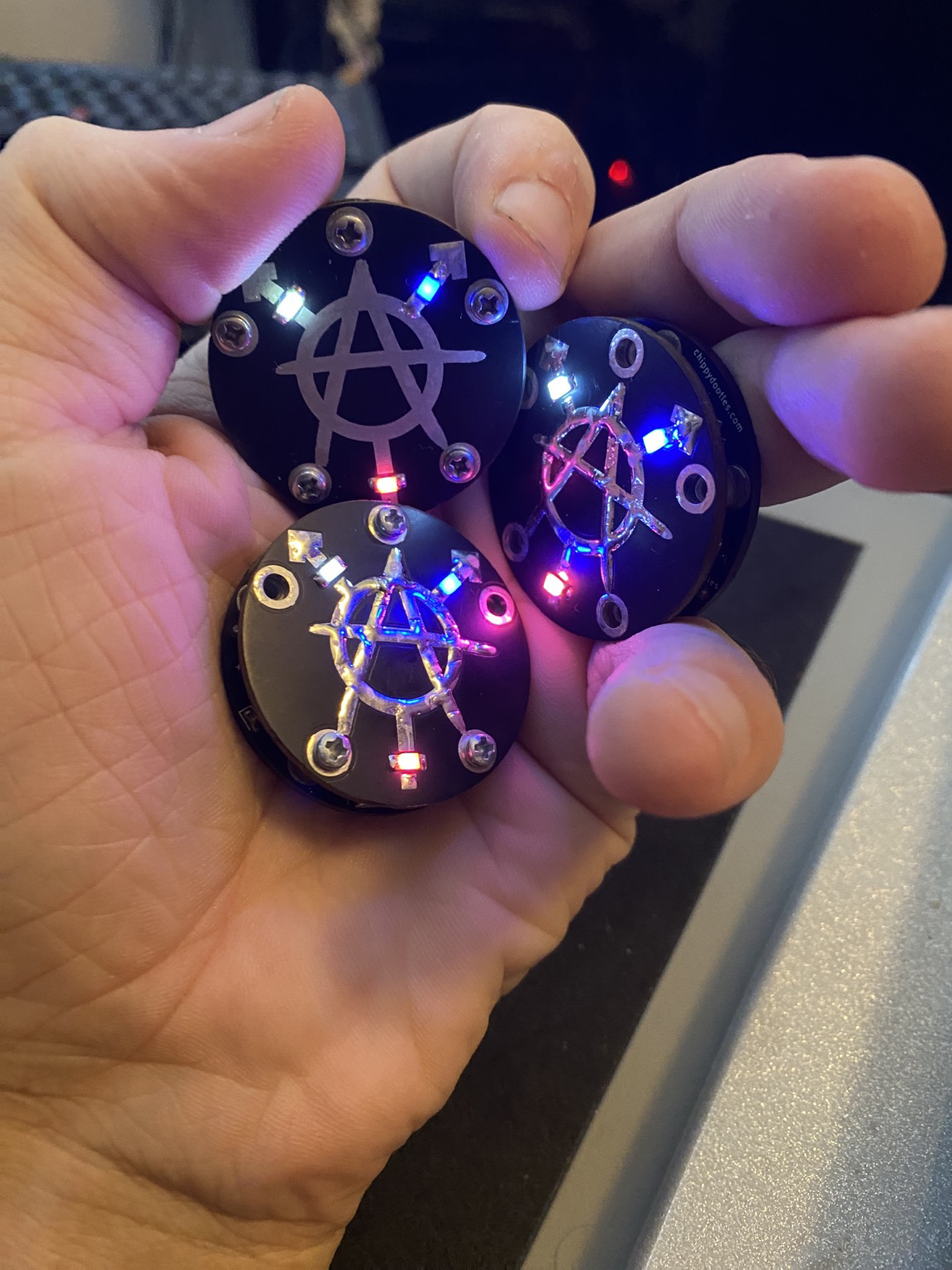

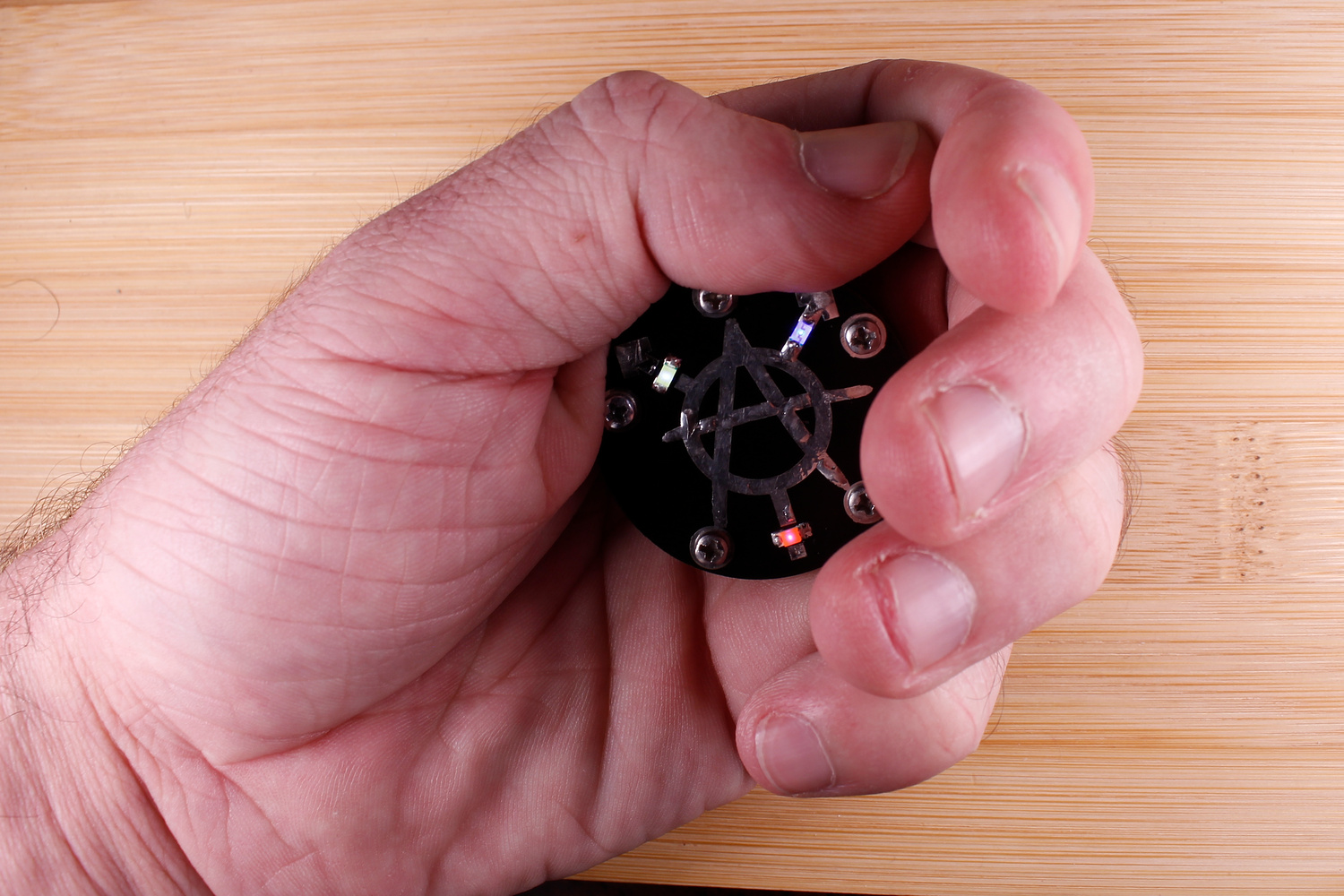

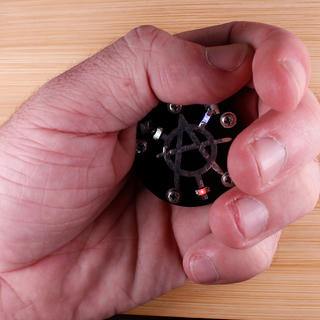

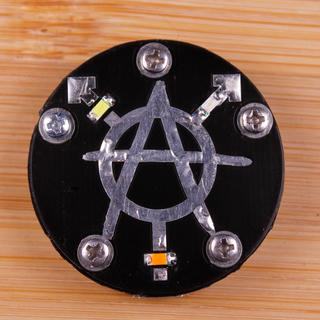

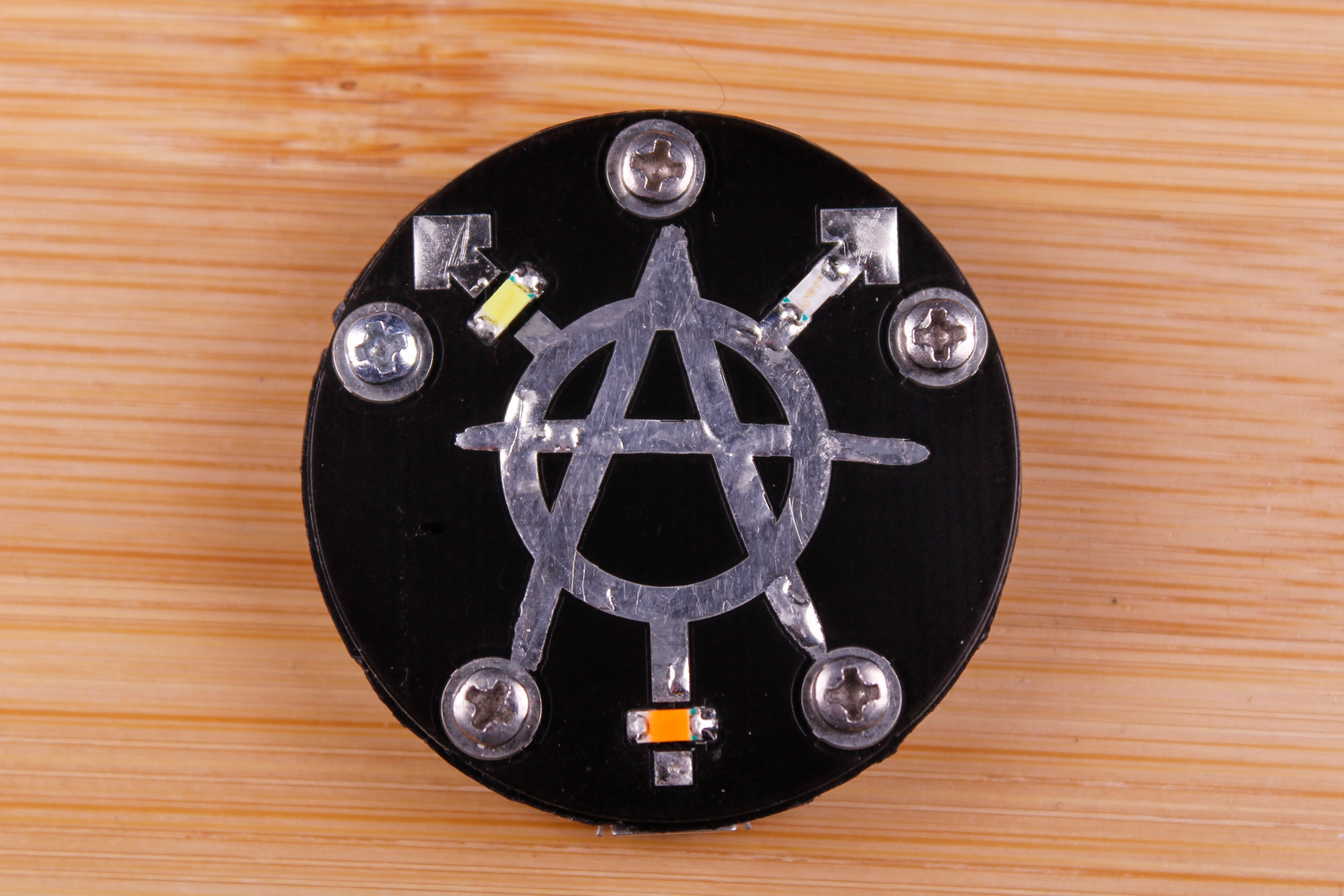

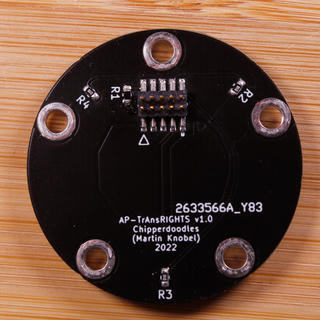

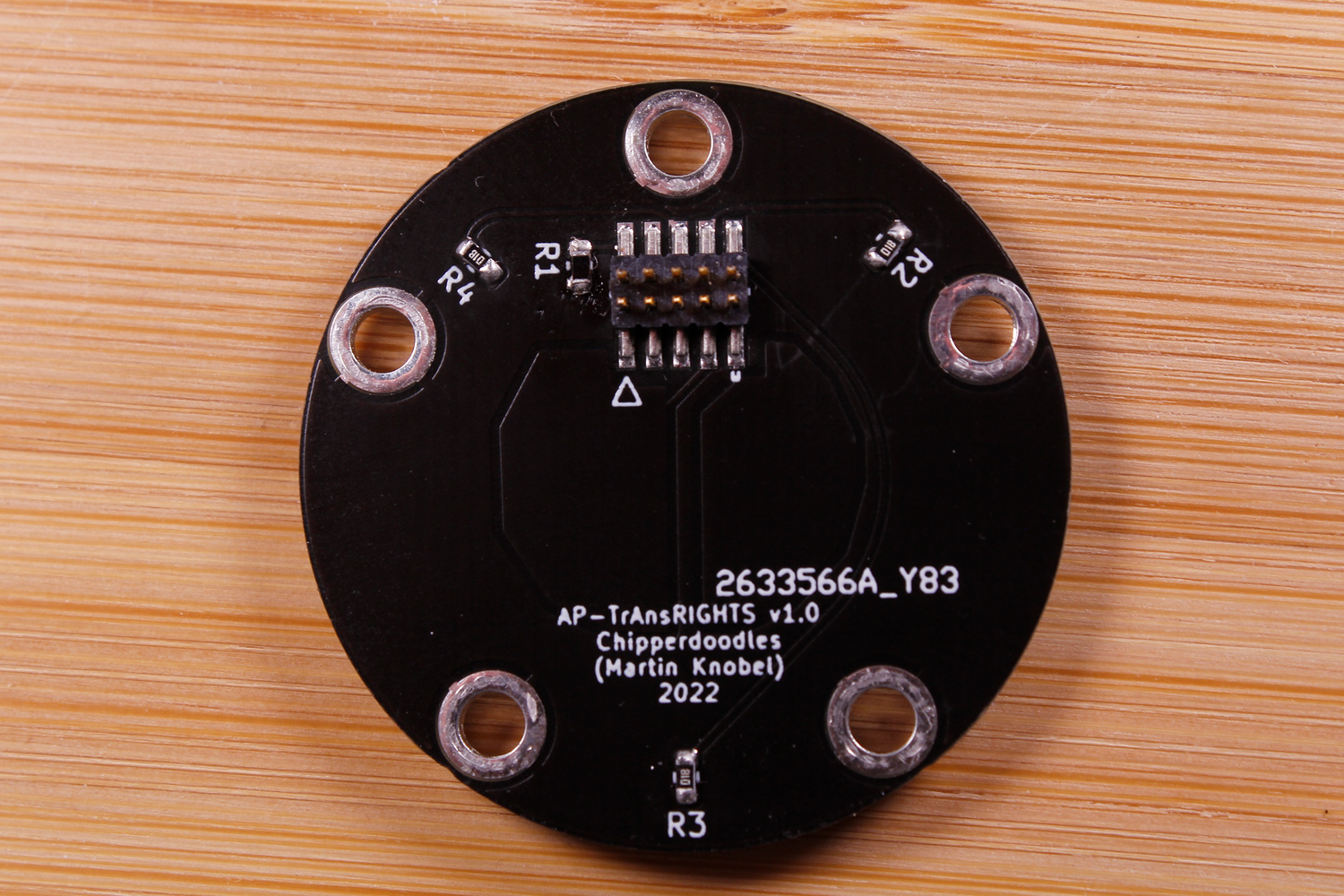

A-TrAnsRights
Gender Anarchy. Be true to yourself.
- LED: 1 Blue, 1 Pink, 1 White
- PINS: PB0, PB2, PB1
- Touch (1616 only): PA4 Pad is zone fill between A and circle
- Configured Voltage: (SEL=L)3.0V, (SEL=H)2.8V
