Attiny x7 dip24 Breakout

Overview

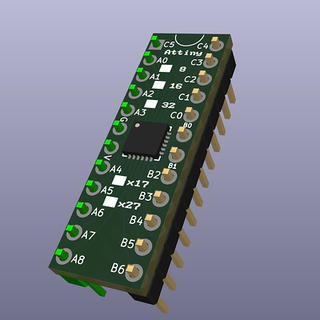

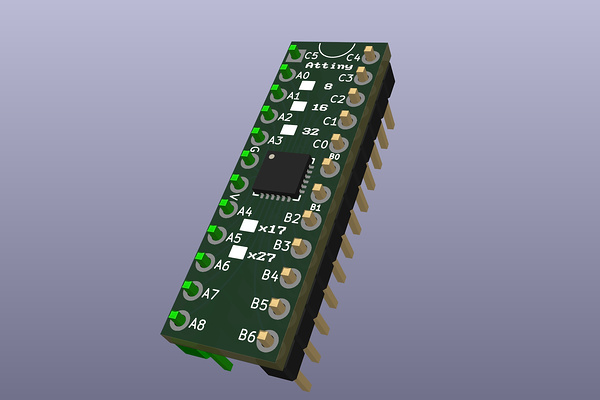

Attiny x17 and x27 Bare bones breakout boards for prototyping with no assumptions about power management, programming etc. Pictures to come.

First versions have a an error on the screen, port PA8 should be labeled port PB7

Specifications

  • Size:
  • MCU: Attiny xx7, (x27 or x17)
  • Pins: All Pins broken out with two 1x12 headers
  • Programming: UDPI pin exposed on in pinout
